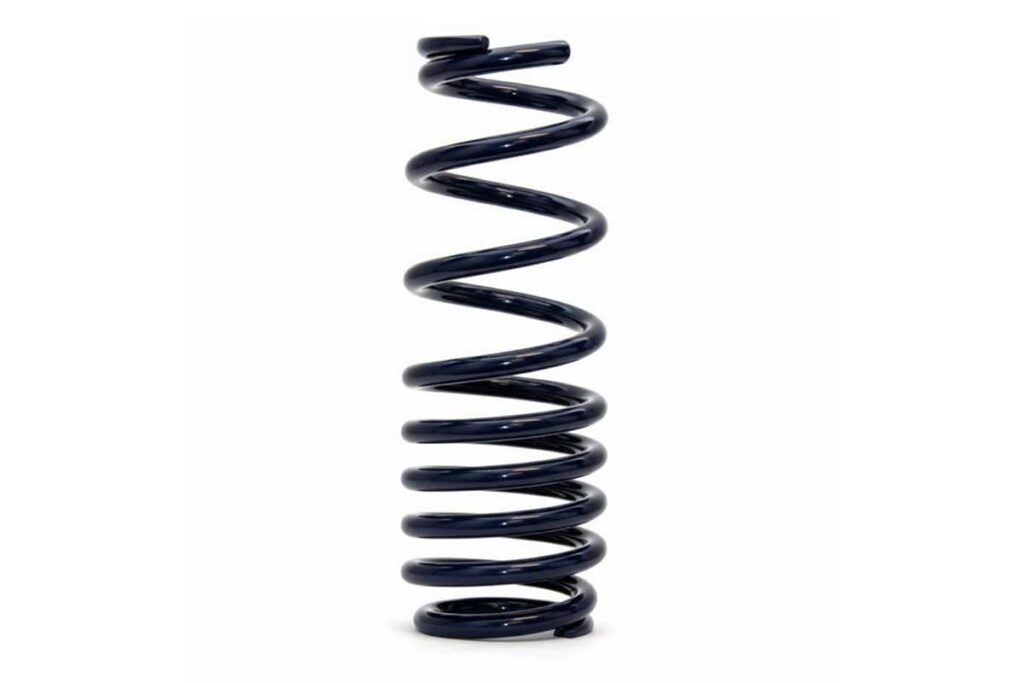

Progressive Rate Coil Spring

Coil pitch variation in progressive rate coil springs determines how quickly the spring rate increases during compression and at what deflection points the rate transitions occur. Tighter initial coil spacing near one end creates a softer initial rate that improves ride quality over small bumps, while the progression to wider-spaced coils provides increasing support as compression continues. The rate increase becomes more aggressive as closely-spaced coils contact and become inactive, effectively shortening the active spring length and increasing stiffness. Engineers tune pitch progression to match vehicle mass distribution, suspension travel limits, and desired ride characteristics, with gradual pitch changes creating smooth rate transitions and abrupt changes producing more distinct soft-to-firm behavior. Testing validates that the designed pitch variation delivers target spring rates at specified deflections while preventing coil binding at maximum compression. Improper pitch progression can cause harsh ride quality if rate increases occur too early or inadequate load support if the spring remains too soft at normal operating deflections.

Manufacturing progressive rate coil springs with variable wire diameter presents significant challenges in material handling, forming equipment control, and quality verification compared to constant-diameter designs. The production process requires specialized coiling equipment capable of transitioning wire diameter smoothly during spring formation, either through tapered wire stock or by joining wire sections with different diameters. Welding transitions between wire sizes demands precise heat control to prevent brittleness or weak points that could lead to spring failure under cyclic loading. Heat treatment processes must account for varying wire cross-sections that exhibit different thermal mass and cooling rates, potentially requiring graduated heating or cooling procedures to achieve uniform material properties throughout the spring. Dimensional inspection becomes more complex because rate verification requires compression testing at multiple deflection points rather than single-point verification used for linear springs. Quality control must verify smooth diameter transitions, confirm rate progression curves match design targets within tolerances typically of plus or minus 5 percent at each test point, and ensure the spring achieves specified solid height without coil interference.

Engineers select between progressive rate coil springs and linear rate spring with helper spring configurations by evaluating packaging constraints, cost considerations, and desired performance characteristics for specific applications. Progressive rate coil springs provide variable spring characteristics in a single component, simplifying installation and reducing part count, but demand more complex manufacturing processes and higher production costs. Linear springs with helper springs or bump stops achieve similar progressive behavior through simpler components, using a primary spring for normal loads and engaging a secondary spring or elastomer bump stop at predetermined compression points. The helper spring approach allows independent tuning of initial and final spring rates through component selection, potentially providing more precise control over the rate progression curve. Packaging analysis determines available space for mounting separate components versus integrated progressive springs. Cost-benefit analysis weighs manufacturing complexity against performance requirements, with progressive rate coil springs often preferred for performance applications where precise rate control justifies higher component cost, while linear springs with helpers suit cost-sensitive applications or retrofits to existing suspension designs.
