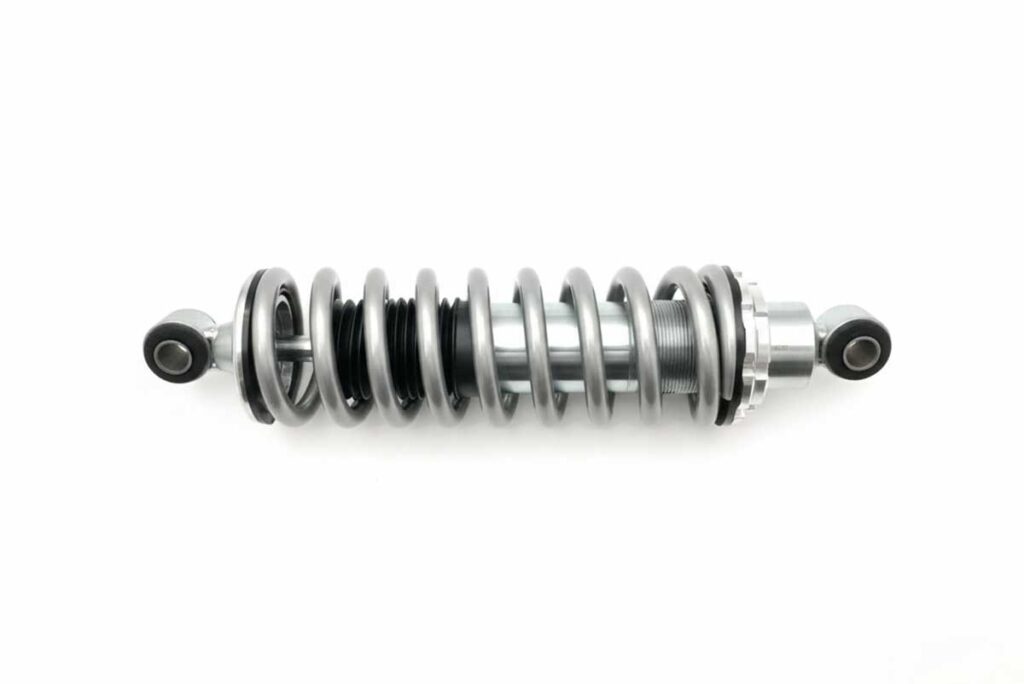

Coil Over Shock Absorber

Spring rate selection in coil over shock absorber applications directly determines suspension natural frequency, body motion control, and tire contact patch management under dynamic loads. Stiffer spring rates reduce body roll during cornering and minimize suspension compression under braking and acceleration, improving handling response but potentially degrading ride quality over rough surfaces. Softer spring rates enhance ride comfort by allowing more suspension travel to absorb road irregularities but can permit excessive body motion during aggressive driving. The selection process considers vehicle mass, weight distribution, intended use, and shock absorber damping capacity to match spring force requirements. Engineers calculate optimal spring rates targeting ride frequencies between 1.0 and 2.5 Hz depending on vehicle type, then validate selections through testing that evaluates ride quality, handling precision, and suspension travel utilization across various road conditions.

Threaded adjustment collar manufacturing for coil over shock absorbers demands precise thread pitch control, concentricity between inner and outer diameters, and perpendicularity of spring seat surfaces to the collar axis. Thread pitch tolerances typically stay within plus or minus 0.05mm to ensure smooth adjustment operation and prevent cross-threading during installation or adjustment. Inner diameter concentricity relative to thread pitch diameter must remain within 0.1mm total indicator runout to prevent binding on the shock body during height adjustment. Spring seat surface perpendicularity to the collar axis requires machining accuracy within 0.1 degrees to prevent spring cocking and uneven load distribution that can cause premature wear. Material selection balances strength requirements against weight considerations, with aluminum alloys common for performance applications and steel for heavy-duty use. Surface treatments including hard anodizing or zinc plating provide corrosion resistance while maintaining dimensional accuracy. Quality control verifies thread quality using go/no-go gauges, measures concentricity with indicator equipment, and confirms spring seat perpendicularity using precision measurement tools.

Engineers determine appropriate damping settings for coil over shock absorbers by analyzing vehicle dynamics requirements, road input characteristics, and driver expectations across the intended usage spectrum. The process begins with establishing baseline compression and rebound damping forces based on sprung mass, spring rate, and target suspension frequencies. Compression damping controls body motion during suspension compression from road inputs or load transfer, while rebound damping manages suspension extension to prevent oscillation and maintain tire contact. Testing on proving grounds evaluates ride quality over standardized bump inputs, handling response during lane changes, and body control under combined braking and cornering loads. Adjustable damping features allow fine-tuning for specific conditions, with softer settings improving ride comfort on smooth roads and stiffer settings enhancing control during aggressive driving or track use. Final damping calibration balances competing objectives of impact harshness isolation, body motion control, and tire contact patch management throughout the suspension travel range.
