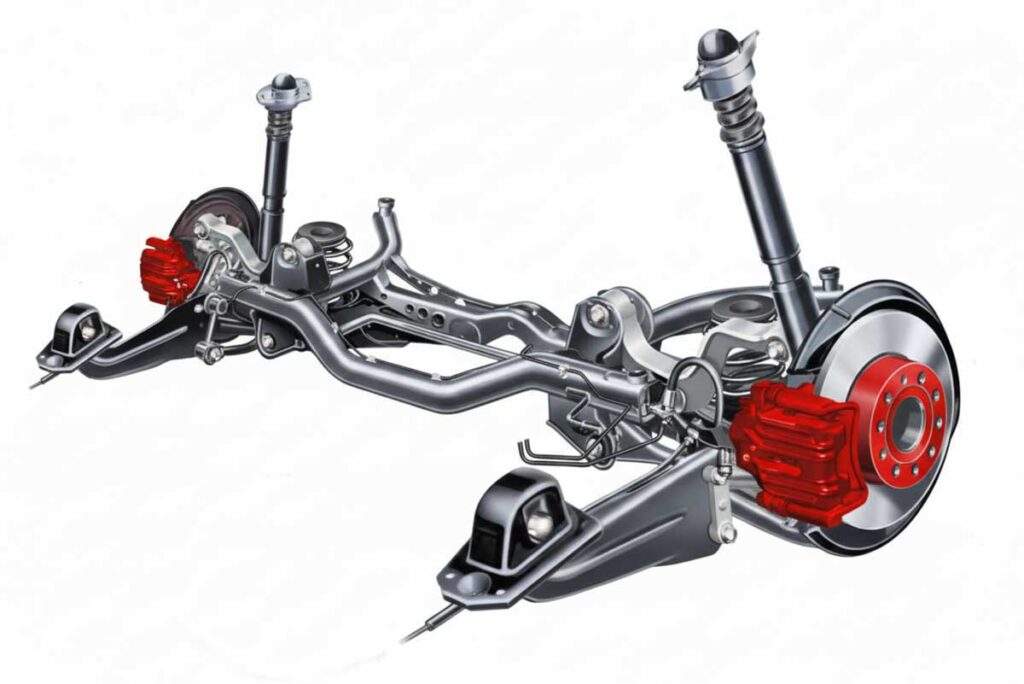

Multi-Link Rear Suspension

Link positioning in multi-link rear suspension directly controls camber change rates through the geometric relationship between upper and lower lateral link mounting points and their respective lengths. When the upper lateral link is shorter than the lower lateral link and positioned higher on the chassis, the suspension generates negative camber gain during compression, improving tire contact during body roll in corners. The instant center location created by these link positions determines the virtual swing arm length, which governs how quickly camber angles change as the suspension compresses. Engineers adjust link angles and mounting point positions to tune camber curves that maximize tire contact patch area during cornering while maintaining acceptable static camber settings for straight-line stability and even tire wear.

Subframe manufacturing for multi-link rear suspension systems presents significant challenges in maintaining three-dimensional geometric accuracy across multiple mounting point locations. Each link attachment point must meet position tolerances typically within plus or minus 1.0mm in all three axes to preserve the designed suspension kinematics. Welding distortion during subframe fabrication can shift mounting hole positions, requiring fixture-based welding procedures and post-weld stress relief to control dimensional variation. Machining operations for bushing bores demand precise bore-to-bore spacing and perpendicularity to prevent binding during suspension articulation. Quality control includes coordinate measuring machine verification of all critical mounting points, checking hole position accuracy, bore concentricity, and subframe flatness. Material selection balances structural rigidity requirements against weight targets, with fabricated steel and cast aluminum both seeing application depending on performance and cost objectives.

Engineers balance compliance and rigidity in multi-link rear suspension bushing selection by analyzing load paths and desired kinematic behavior at each link connection point. Stiffer bushings in lateral links provide precise lateral load control and responsive steering feel but can transmit more road noise and harshness into the cabin. Softer bushings in trailing links allow controlled compliance under longitudinal loads from acceleration and braking, filtering impacts while maintaining adequate geometry control. The selection process involves finite element analysis of bushing deflection under predicted load cases, followed by vehicle testing to validate noise, vibration, and harshness characteristics alongside handling response. Bushing material choices include rubber compounds with varied shore hardness, polyurethane for performance applications, and hydraulic bushings that provide frequency-dependent damping for specific noise isolation requirements.
