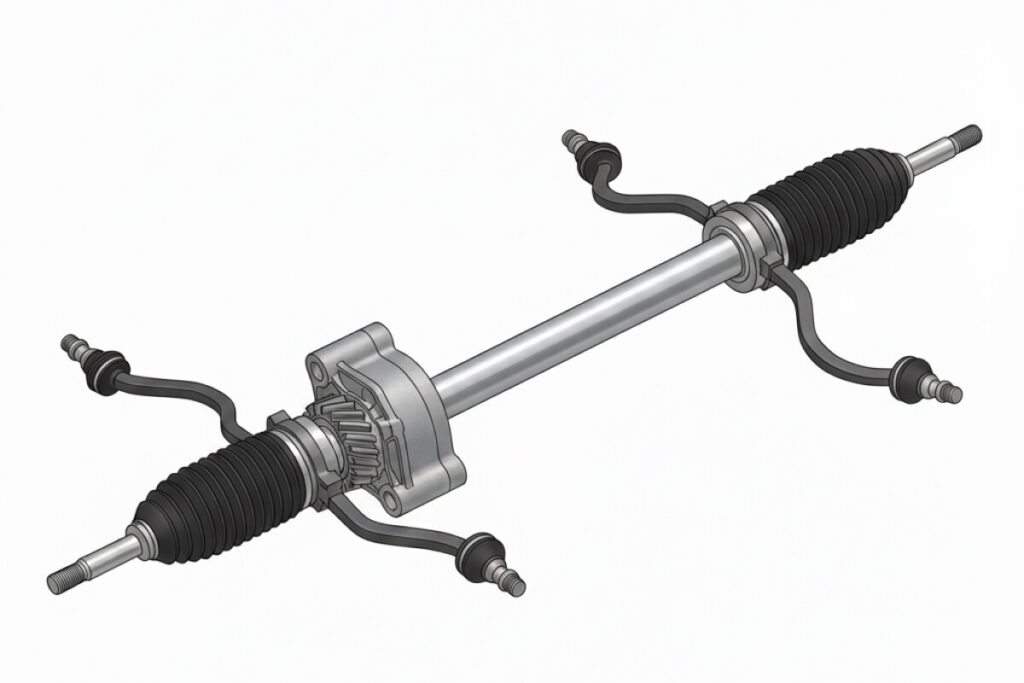

Steering Rack

The steering rack fixes the inner tie rod pivot points, which work with the control arm pivots to define toe change through bump and rebound. If the rack sits higher than intended, the wheels can toe out in bump, which may reduce braking stability. If the rack sits too low, the wheels can toe in during bump, which can increase mid-corner understeer and tire temperature.
Correct fore-aft placement also limits bump steer during body roll. When you hold the rack height, offset, and pivot spacing to design targets, you protect straight-line stability, corner entry feel, and tire life.

A manual steering rack has no assist, so driver effort depends on steering ratio, tire load, and friction in joints. A hydraulic power steering rack uses a pump, hoses, and a control valve to add pressure, which lowers parking effort but adds weight and maintenance.
An electric power steering rack places a motor and reduction gear on the rack or the column and uses software to tailor assist. EPS removes the hydraulic circuit, reduces parasitic loss, and enables ADAS features like lane centering. Each type demands different mount stiffness, seal designs, and durability margins in related suspension parts.

Start with rack center height relative to the lower control arm pivots, then confirm inner tie rod pivot spacing and total rack travel. Check pinion angle to avoid U-joint bind. Verify mount boss spacing, bushing outside diameter and width, and the required durometer. Confirm inner tie rod thread type and length, outer tie rod stud taper, and bellows clearances at full jounce and rebound. Record steering ratio and turns lock to lock to ensure knuckle stops engage correctly. These checks keep bump steer within specification and prevent bellows over-extension or ball joint over-articulation during extreme travel.

Look for fluid leaks on hydraulic racks, which point to worn pinion or rack seals. Listen for clunks over small bumps or free play on center, which suggests gear tooth wear, bushing degradation, or inner joint lash. Notchy or sticky feel may indicate corrosion on teeth or excessive bearing preload. Torn bellows allow water and grit to contaminate the rack bar and inner joints, which accelerates wear.
EPS racks can show motor or sensor faults, thermal derate, or assist oscillation. Early bellows failure can also indicate misaligned geometry that stretches the boot at full travel.

Select bushing durometer to balance isolation and precision. Too soft increases rack shift and vague feel, while too hard passes road harshness into the cabin. Control gear lash and bearing preload to avoid rattle but keep friction low. Use bellows with stable hoop stiffness and quality clamps to avoid whistle or flutter at highway speed. Match outer tie rod friction torque side to side so the vehicle tracks straight.
For EPS racks, apply assist maps that taper gain near center and smooth motor dither. Ensure the subframe has adequate local stiffness so the rack does not migrate under cornering loads.
