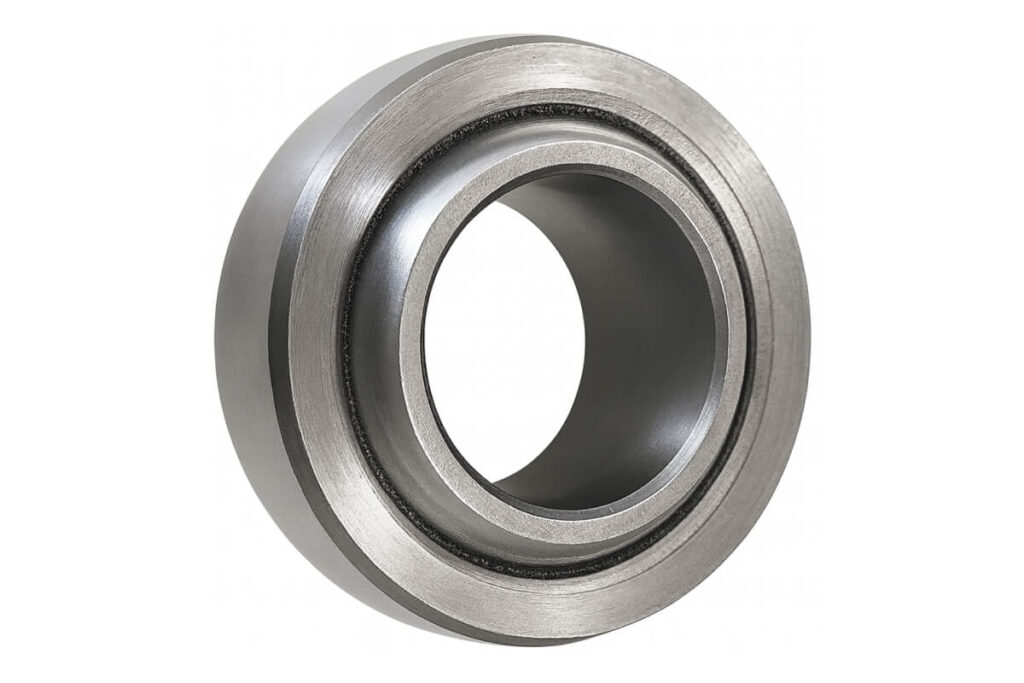

Automotive Spherical Bearing

When you choose a spherical bearing, start by identifying static and dynamic load ratings. Static load rating refers to the maximum load the bearing can support without permanent deformation when stationary. Dynamic load rating indicates the bearing’s ability to support loads under motion. In automotive suspension, dynamic loads vary due to acceleration, braking and cornering forces. You should match the bearing’s dynamic rating to the highest expected loads plus a safety margin—typically 1.5 to 2 times the peak force. Also check the bearing’s misalignment capacity, since suspension angles change rapidly. Confirm that the selected material and sealing options resist corrosion and contamination. This ensures consistent performance and service life in harsh road conditions.

An automotive spherical bearing and a ball joint both allow angular rotation, but their internal designs differ. A ball joint uses a stud and socket assembly where a steel ball fits into a polymer-lined housing. It offers limited misalignment—usually under ±15 degrees—and often includes an integrated dust boot. In contrast, a spherical bearing has concentric inner and outer rings with a spherical sliding surface. It supports higher misalignment angles—often up to ±25 degrees—and larger radial and axial loads. Spherical bearings handle harsher environments but may require external lubrication or robust seals. Understanding these differences helps you choose the right joint type for suspension arms, sway bars or steering linkages based on load, angle and maintenance requirements.

Manufacturers typically use hardened steel or stainless steel for inner and outer races. Hardened steel offers high load capacity and wear resistance, while stainless steel adds corrosion protection. Bearing surfaces often receive PTFE or bronze liners to reduce friction and provide self-lubrication. The choice depends on application demands: PTFE liners work well in dry conditions but may wear faster under heavy loads. Bronze-backed liners handle higher temperatures and heavier loads but need periodic lubrication. For off-road or marine vehicles, stainless steel races with sealed lubrication chambers are common. Reviewing material data sheets and test reports lets you match bearing material to expected operating temperature, load cycles and exposure to moisture or chemicals.
