10 Axis Welding

A six-axis robot moves the torch along three linear and three rotational axes. It handles most simple welds but struggles with tight corners and intricate shapes on suspension parts. In contrast, a 10 Axis Welding system adds four extra degrees of freedom—often via a secondary positioner or tilt-rotate mechanism. This lets you access hard-to-reach areas without reorienting the part manually. You program all ten axes in one sequence, reducing cycle times and setup changes. The extra axes improve reach and flexibility, helping you maintain consistent weld quality on complex geometries.

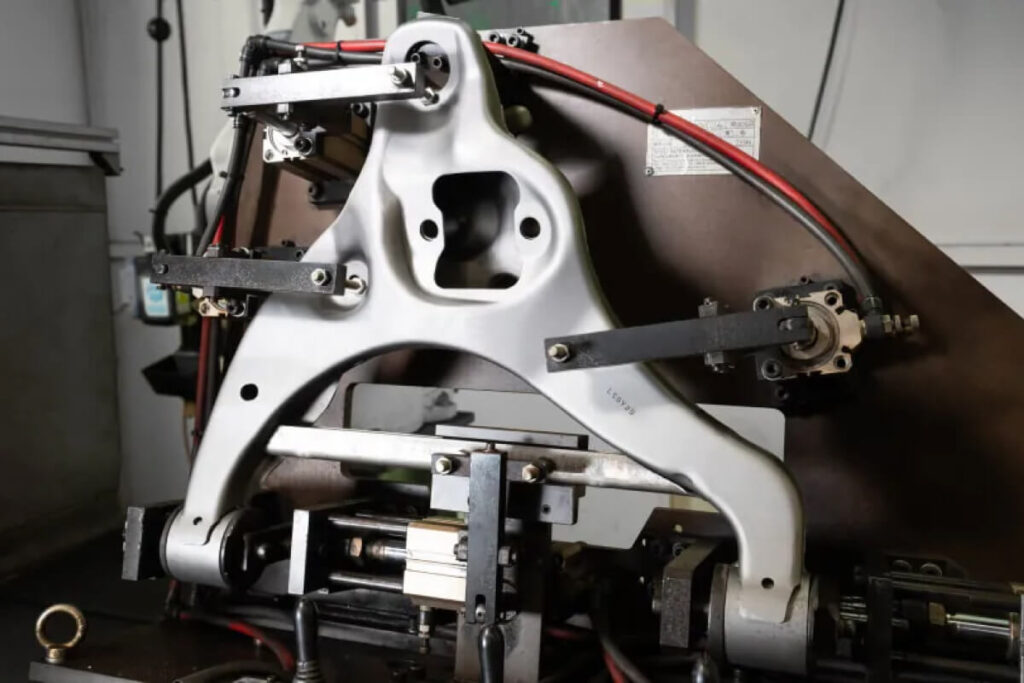

You’ll find 10 Axis Welding in high-volume production of control arms, subframes, strut towers, and multi-link assemblies. These parts have curved surfaces, intersecting tubes, and tight internal corners. Traditional fixtures force multiple clamping and re-weld steps. With ten-axis automation, you weld all seams in a single pass. This prevents heat buildup, distortion, and dimensional drift. It also speeds up production by eliminating manual re-fixtures. If your line demands precision and repeatability on complex joints, 10 Axis Welding delivers the consistency you need.

To deploy 10 Axis Welding, you need a six-axis robotic arm paired with a multi-axis positioner or tilt-rotate table. The positioner adds the extra four degrees of freedom. You also require a welding power source compatible with the robot controller. Programming involves offline simulation software that maps torch paths across all axes. You define weld schedules, torch angles, and travel speeds. Then you upload the program to the robot controller. You should have a technician skilled in robot kinematics and welding process parameters to fine-tune seam tracking and weld quality.
